Process Tanks & Vessels

Being one of the leading manufacturer of top class process equipment and systems, our mission is to be the best at design, fabrication and erection of steel based process vessels, tanks and reactors. Our performance standards and goals are dictated by safety, unsurpassed quality, and maintaining schedules that are significantly better than industry-available time frames. Since over few decades Alesol Equipment has grown to establish a focus on customer service along with meeting world-class quality standards. We offer a wide range of Process Vessels and Reactors matching the diverse range of applications and requirements of various process industries. With Alesol, you can be assured of matchless quality, cost, life cycle support, innovation & performance of the products supplied to you.
Our Process Vessels are designed and equipped with the controls and accessories to complete a sub-process as part of an overall process. The material that the process vessel is made of, as well as its accessories and controls, depend on its intended use.
Blending, Fermentation, Separation, Cooling, Purification and Changing a Material’s State are just some of the processes that can be carried out in our process vessels. Our vessels may be connected to the previous or next processes horizontally or vertically as per the requirement.
The various steps, stages or processes in the process industries usually have specific requirements such as Time, Pressure, Temperature and other operating conditions. Alesol process vessels allow the proper control of the required operating conditions in every step until the desired product is attained.

The process industries include Refineries, Food and Drug Manufacturing, Chemicals, Paint and other similar operations that manufacture products in bulk quantities. Following are some of the types of process vessels that we provide:

  • Process Vessels to separate components from the raw material or process input such as the benzene splitter in an oil refinery.
  • The reactor pressure vessel for processes that require pressure to take place or create pressure resulting from the process.
  • Jacketed process vessels for processes that need to maintain a required temperature.
  • Lined process vessels commonly found in the food, pharmaceutical, chemical and paper industries, for processing substances that may cause rust or corrosion to the equipment.
  • An autoclave is used for processes that require high temperatures and high pressures in a sterile environment.

Our Process Vessels are usually designed and manufactured according to the challenging process requirements of different process industries. Each type of our Process Vessels are equipped with the following common features:-

Salient Features
  • Access Cover
  • Ventilation
  • Sample point
  • Sight glass, with or without light
  • Connecting all kinds of sensors and signal generators.
  • CIP Equipment.
  • Mixers, located at the top, on the side or at the bottom e.g. bottom-mounted magnetic agitator.

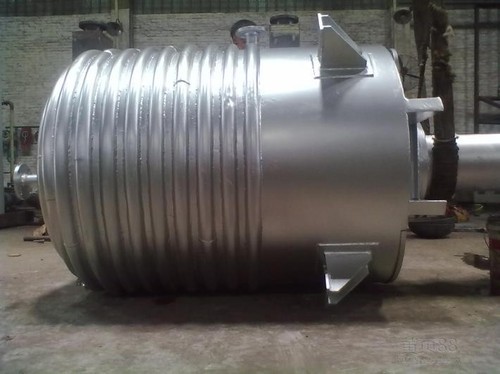

Limpet / Half-Pipe Coil Jacket Process Vessels

Great for large tank applications, our Half-Pipe or Limpet Coil Process Vessels are generally used for high-temperature applications. The piping sits on the outside of theses tanks or vessels and allows for temperature controlling fluid or gas to flow around the contents of the tank without directly interacting with it (such as cooling water, steam, or hot oil).
Our Half-Pipe Coil Jackets provide optimal strength, rated to 750 psig (depending on material thickness), while utilizing light-gauge metal for fabrication that saves on material expenses. In addition, Half-Pipe jackets or Limpet Coils are recommended for high temperature industrial processes and all liquid head transfer applications.
Preferred for high-temperature industrial processing applications, these vessels are also excellent for heat transfer and thermal fluid heating systems, particularly when the utility fluid is a liquid. These Half-Pipe or Limpet jackets can also be divided into multi-pass zones for maximum flexibility.

Advantages:
  • Welded around the vessel.
  • Best for when jacket pressure is used to determine wall thickness.
  • Middle of the road cost.
  • Pressure good up to 500 psig.
  • Used commonly for steam, water, hot oil, and other media.
  • Long Service Life
  • Sturdiness
  • High Durability
  • Cost Effective
  • No leakages
  • Excellent Efficiency
  • Less Maintenance
Salient Features:
  •  Available in the range of 500 Liters to 60,000 Liters.
  • Offered in Stainless Steel 316, 304 or Carbon Steel Material.
  • Adheres to ASME and other International Standards with special attention to Argon and Arc welding procedures.
  • Spirals welded on outer surface of the main vessel for uniform circulation of heating or cooling media like steam, oil, water etc. and also provides extra strength to the main vessel.
  • GMP range of equipment available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding, flush grinding and Insulation with mirror finished S.S cladding.
  • Energy efficient direct drive design for the agitator , with VFD option to vary the RPM of the drive
  • Agitator design to suit the reactants viscosity and density.
  • Vessel design with form cutter for the process which generates forms
  • Save time and money with our Value added products and services like Process Automation, valves and fittings.
  • Manufactured as per custom specifications.
  • Manufacturing facilities approved by the renowned consultants and Third party inspection agencies.
